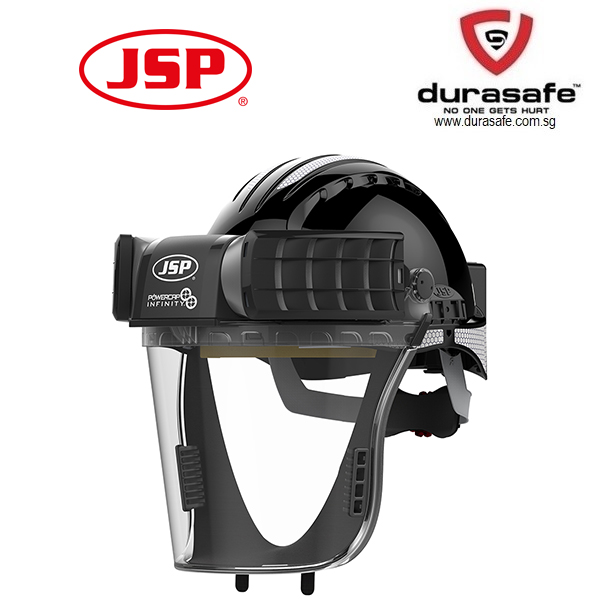

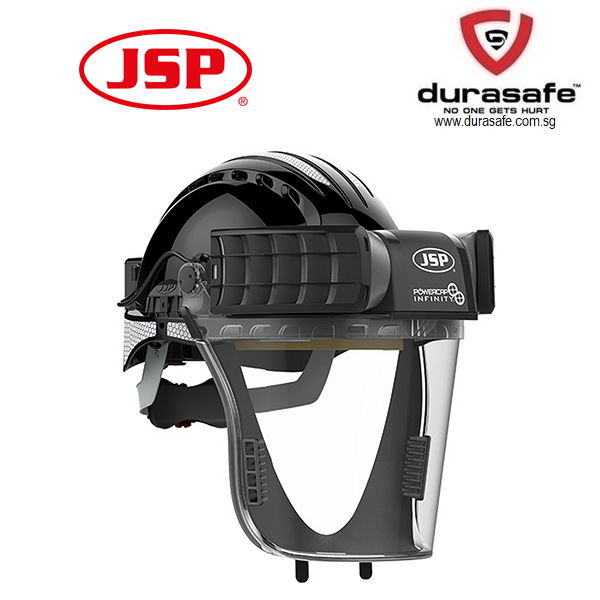

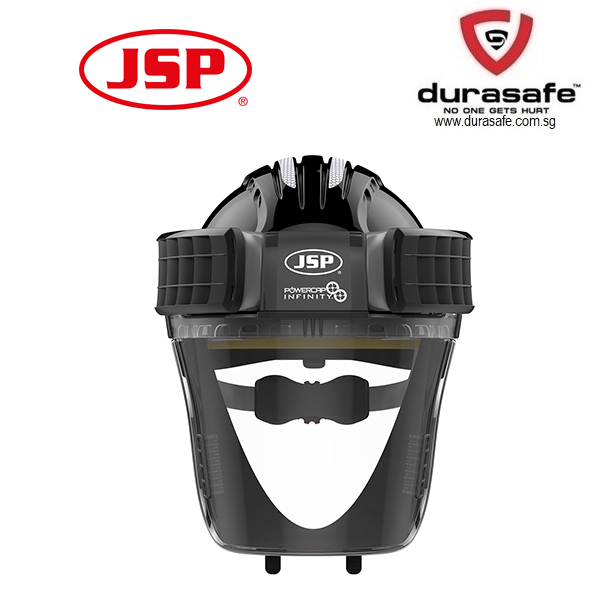

JSP CEA646-001-100 PowerCap Infinity Powered Air Purifying Respirator complete with Black Helmet
• Respiratory protection: EN12941:1998 + A2:2008 TH3P, APF 40
• Head protection: EN397
• Eye & face protection: EN166.1.B
• Hearing protection (Optional extra): EN352-3
• Weight: 1200g
• Head size range: 53cm – 63cm
• Battery type: Rechargeable Lithium-ion
• Battery run time: 8 hours
• Battery charge time: 8 hours
• Reach compliant
• RFID enabled
• Made in UK
• BSiF Product Innovation Safety Award 2018
The NEW Powercap® Infinity® PAPR – a fully integrated TH3 powered air respirator offering 4 of the highest levels of protection in one intuitive head mounted unit. Giving the wearer complete above the neck 4 in 1 protection. PowerCap® Infinity®, the perfect choice for many industries where dust poses a great danger to health. The unit provides the very latest in Powered Air Purifying Respiratory technology, combining decades of
innovation from JSP in the fields of respiratory, head, eye and face protection.
4 IN 1 PROTECTION

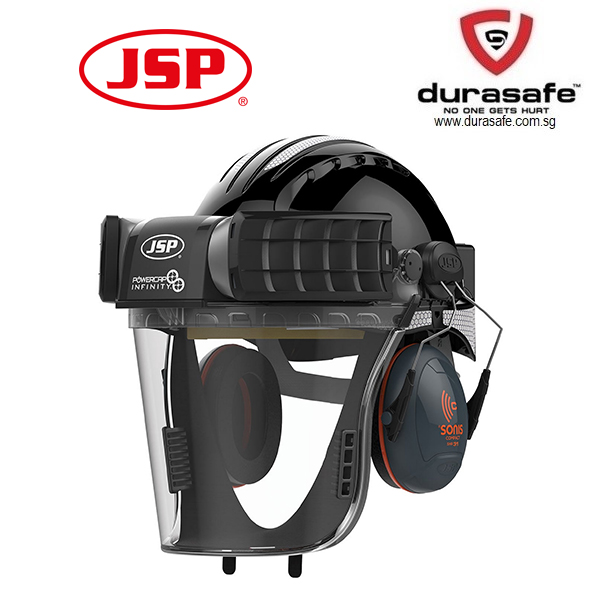

PowerCap® Infinity® is the very latest in PAPR technology, combining decades of innovation from JSP in the fields of respiratory, head, eye and face protection. Sonis® ear defenders can also be added to complete the wearer’s above the neck protection.
PowerCap® Infinity® offers respiratory protection to TH3, with a Nominal Protection Factor of 500 (UK APF 40). TH3 is the highest possible rating in the EN 12941:1998 + A2:2008 standard.
HIGH EFFICIENCY PARTICULATE AIR FILTERS
The high capacity HEPA filters coupled with the aerodynamically optimised pre-filter covers ensure that PowerCap® Infinity® delivers 160 litres per minute of clean air to the user with maximum battery efficiency. Filters can be effortlessly replaced using an intuitive quick-change bayonet system.
USER RESPONSIVE SMART PPE
Real time diagnostics monitor the system and the wearer twice per second, giving the user accurate, dynamic feedback. Periods of high respiratory demand are monitored and catered for by constantly maintaining a positive pressure inside the respirator. Feedback is given on battery and filter condition via the heads up display and audible notifications.
OPTIMAL AIR FLOW
For prolonged user comfort it is important to control the movement of air inside the respirator. JSP, in partnership with leading motorsport dynamicists, have developed an airflow system to avoid misting and increase user comfort.
PowerCap® Infinity® incorporates the high performance JSP EVO®5 Olympus® industrial safety helmet. Conforming to: EN397 (European Standard). ANSI/ISEA Z89.1 (American National Standard). CSA Z94.1 (Canadian Standard). GB2811 (Chinese Standard)
PANORAMIC IMPACT VISOR
The optical class 1 visor conforms to EN166.B offering impact protection at speeds of up to 270 mph (tested using a 6mm steel ball bearing). The visor has K rated anti-scratch coating and a replaceable peel-off visor protector to prolong it’s life.
Key elements of the PowerCap® Infinity® are user-replaceable, allowing easy maintenance and cleaning. This includes: filters, filter covers, visor, peel-off visors, helmet, harness strap, turbo drive unit and carrier, battery pack, visor seal, charging dock, air flow indicator test unit and carry case.
