Part Number: POA-001-CN

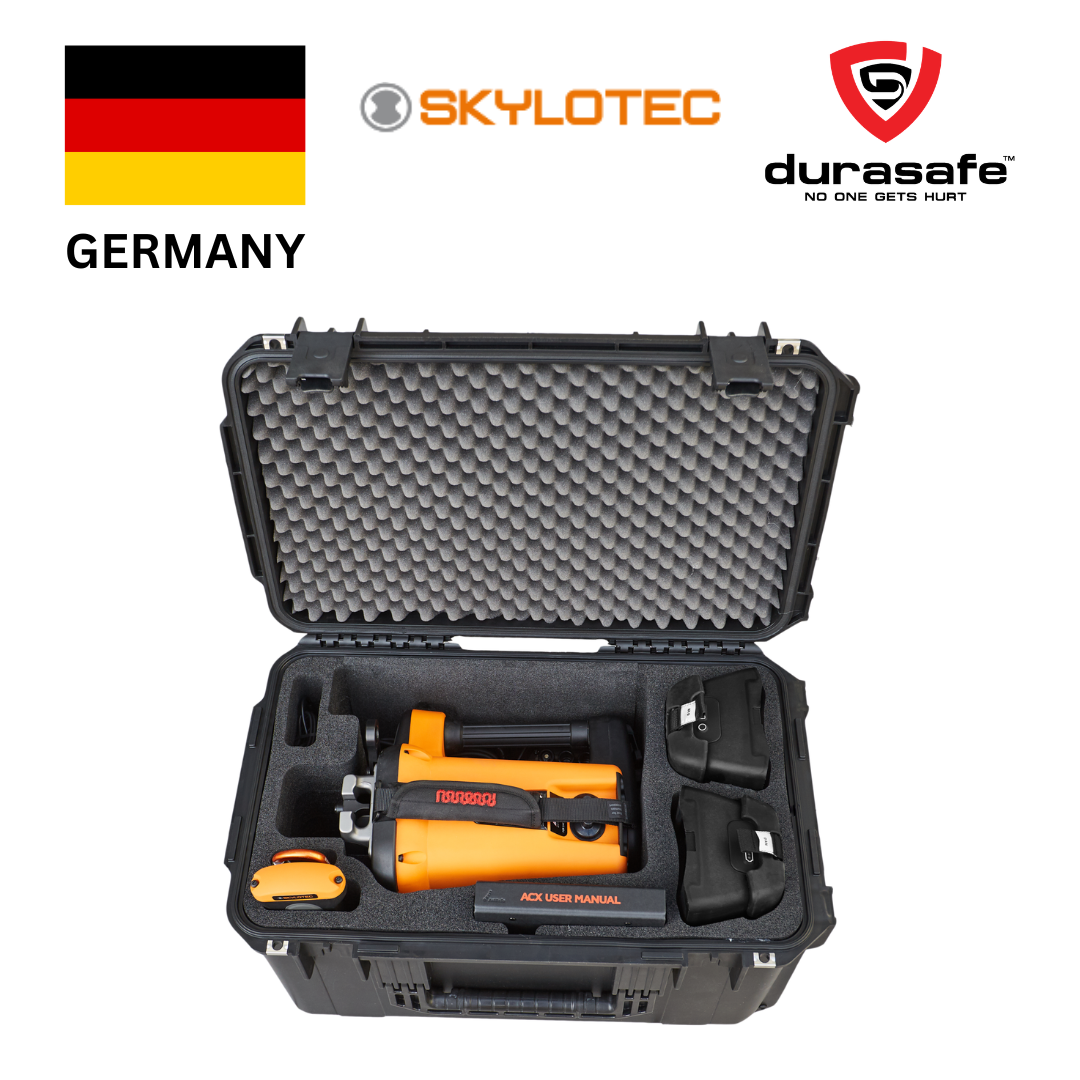

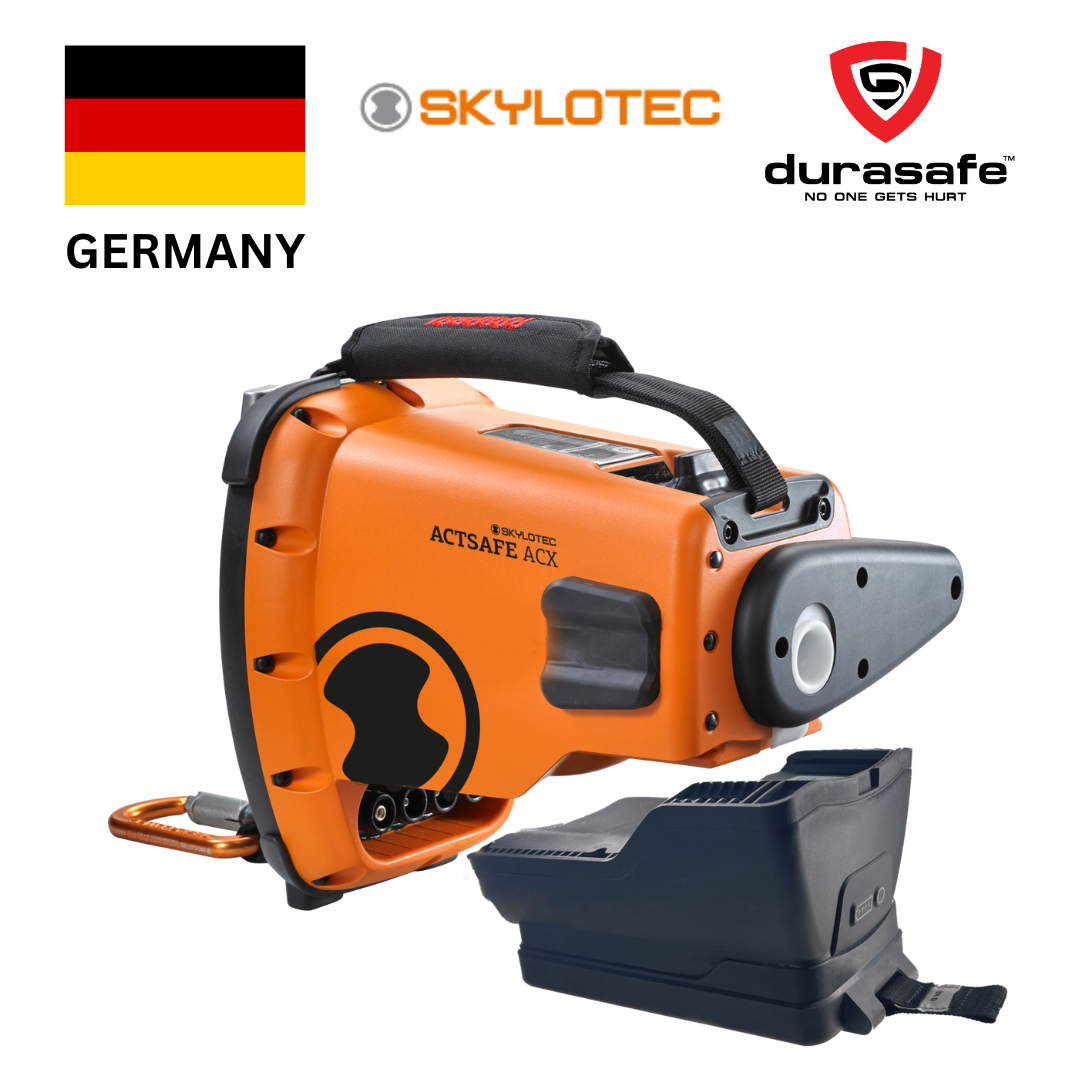

Set consisting of battery-operated power ascender, two batteries and charger

Efficient work at height: Simplified and accelerated work on structures that are difficult to access, such as facades, wind turbines and masts
All-in-one set: includes two high-capacity batteries, remote control and a charger
Extended performance: with High Capacity Battery for increased range.

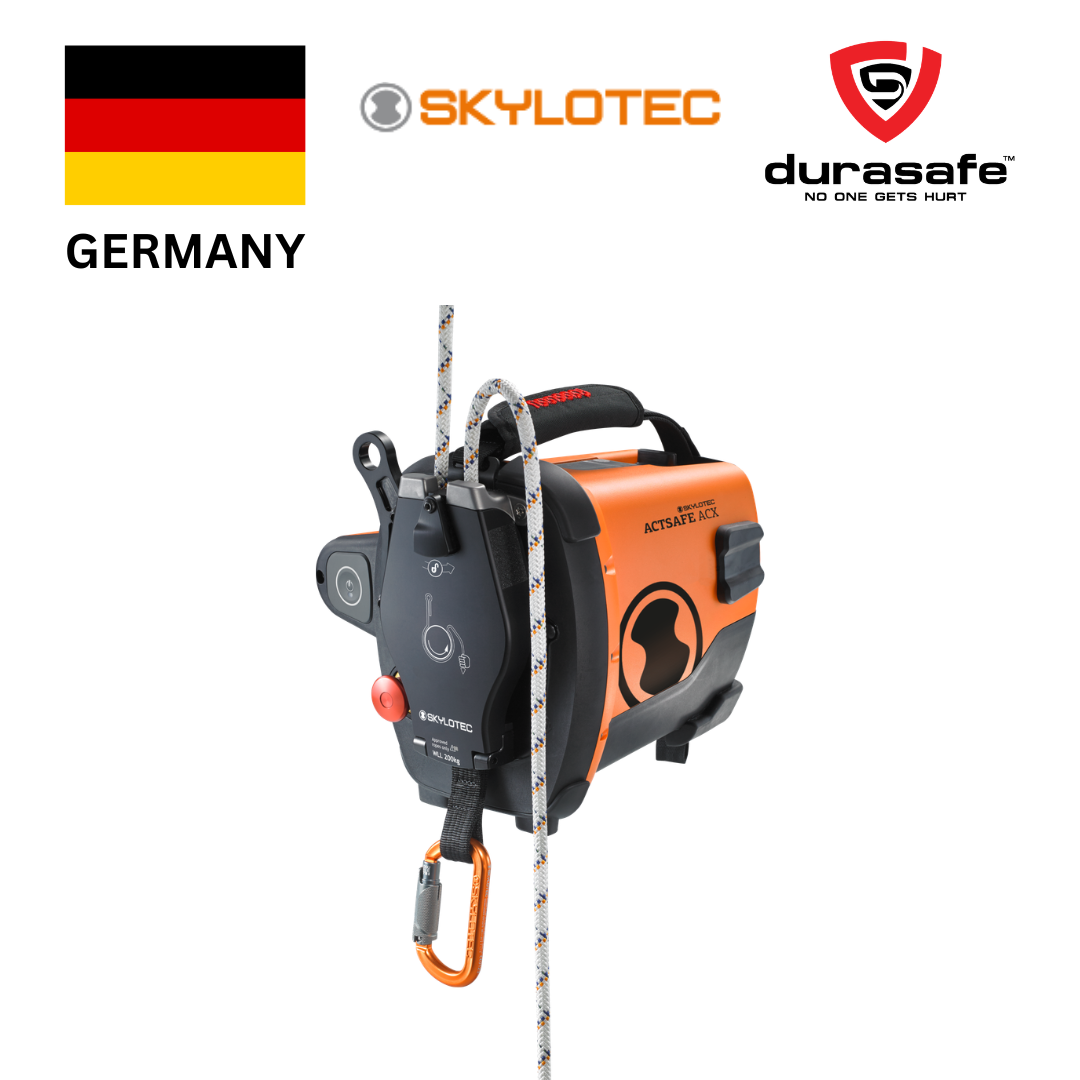

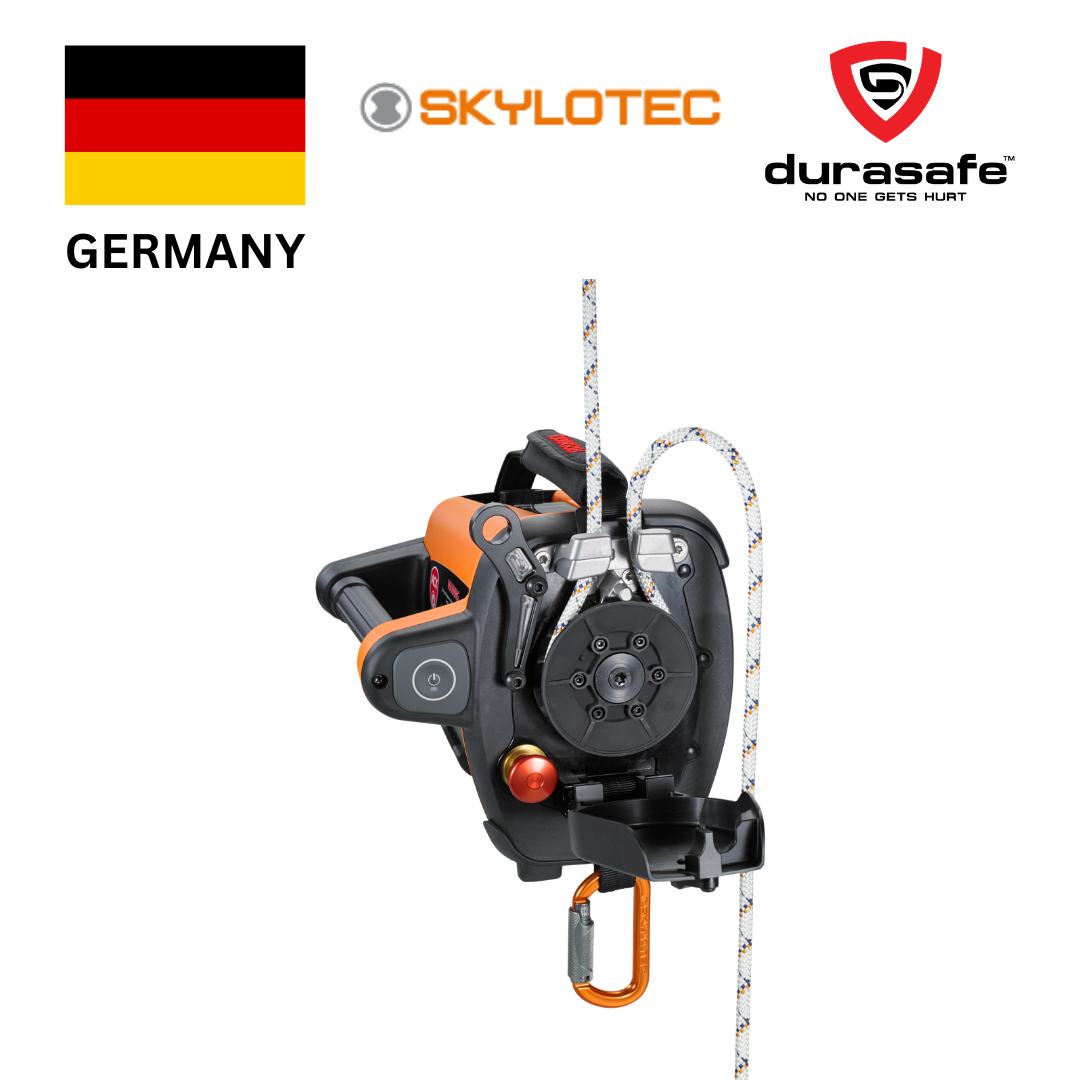

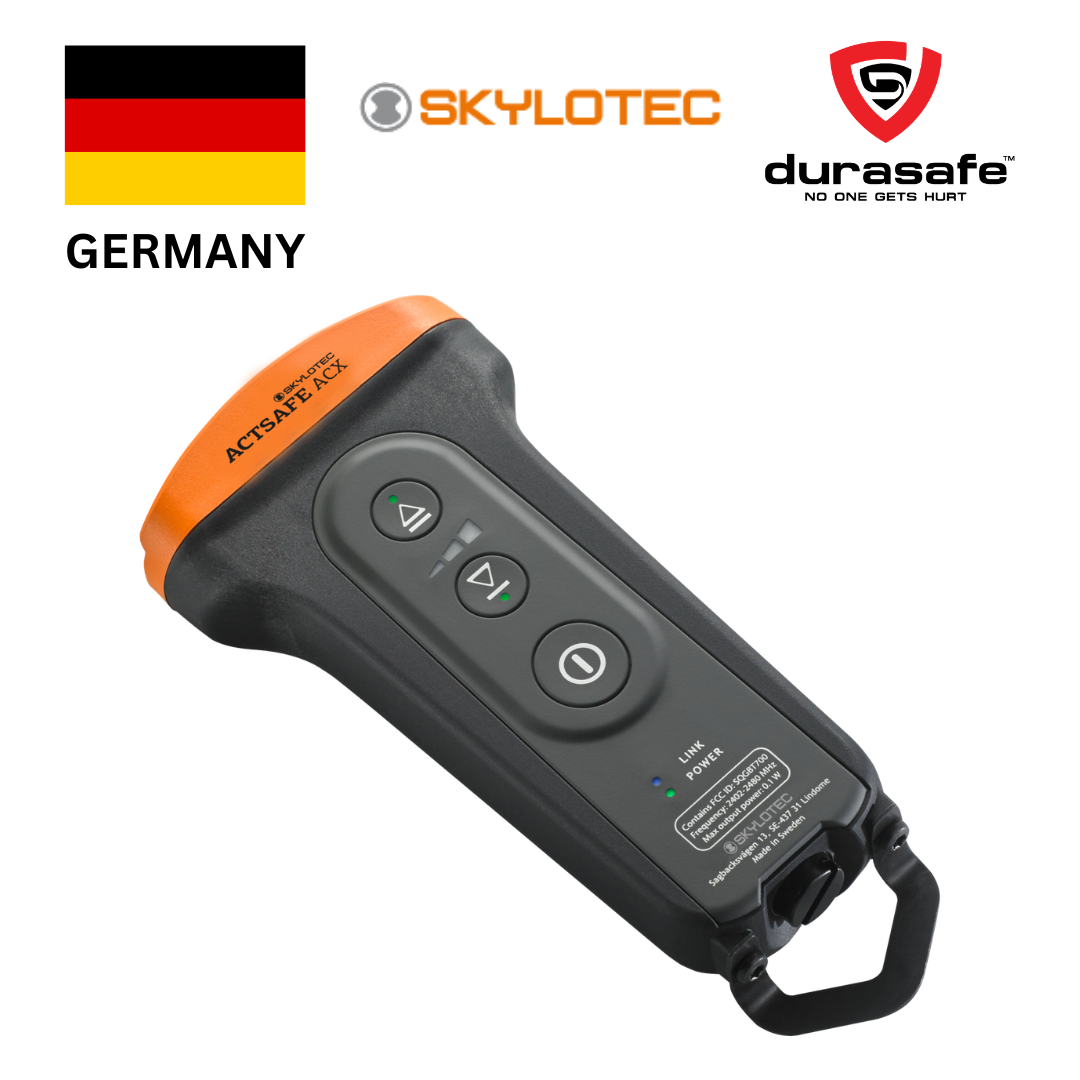

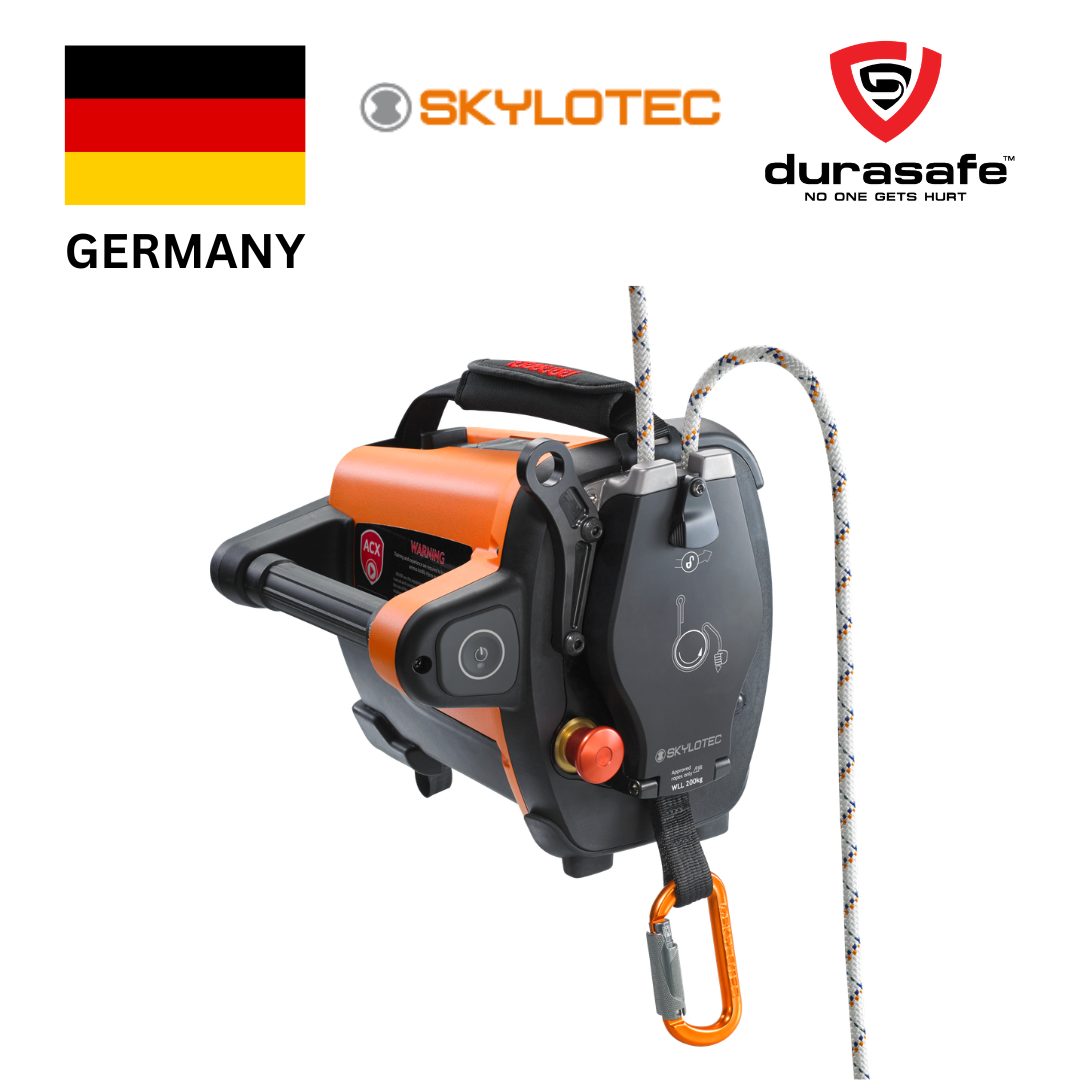

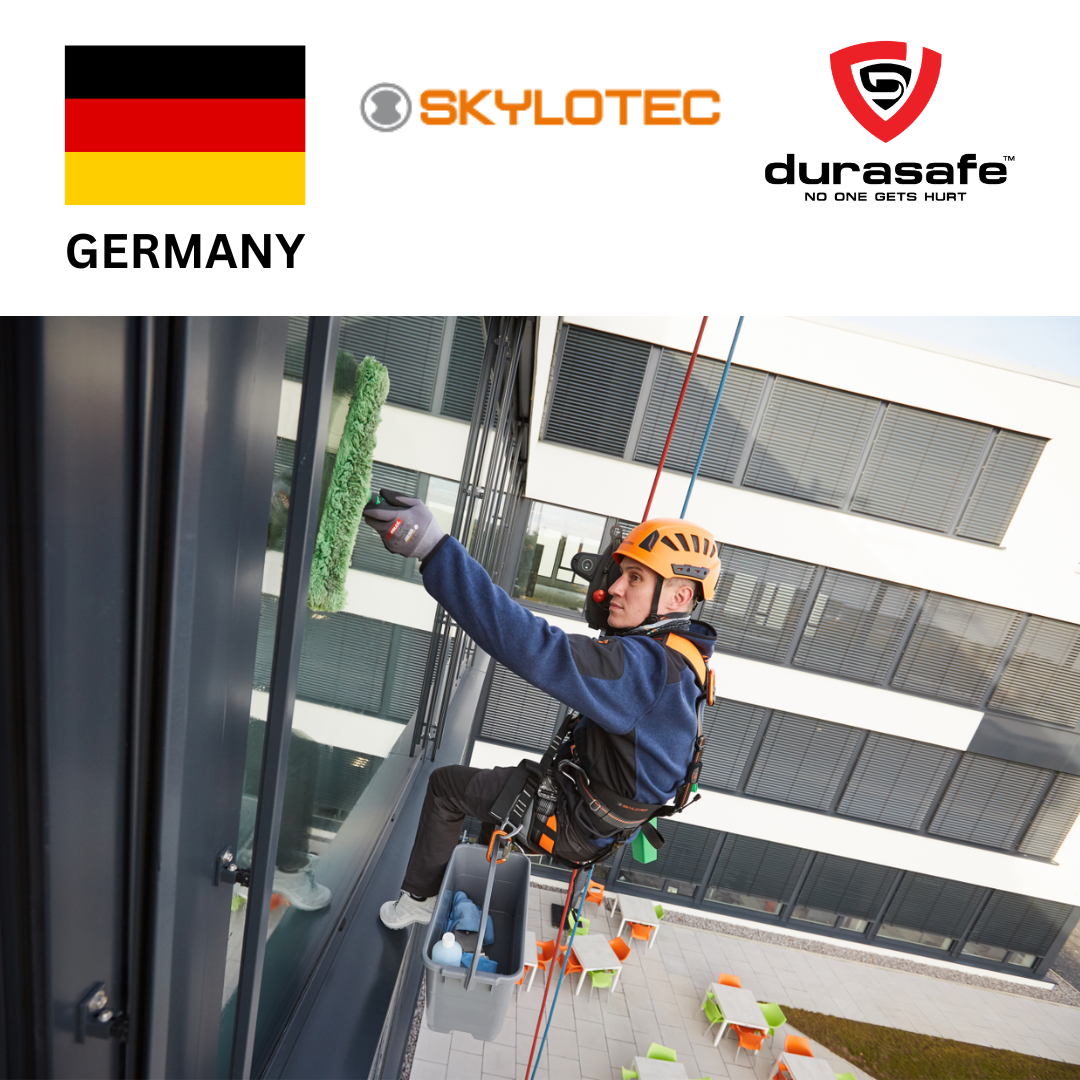

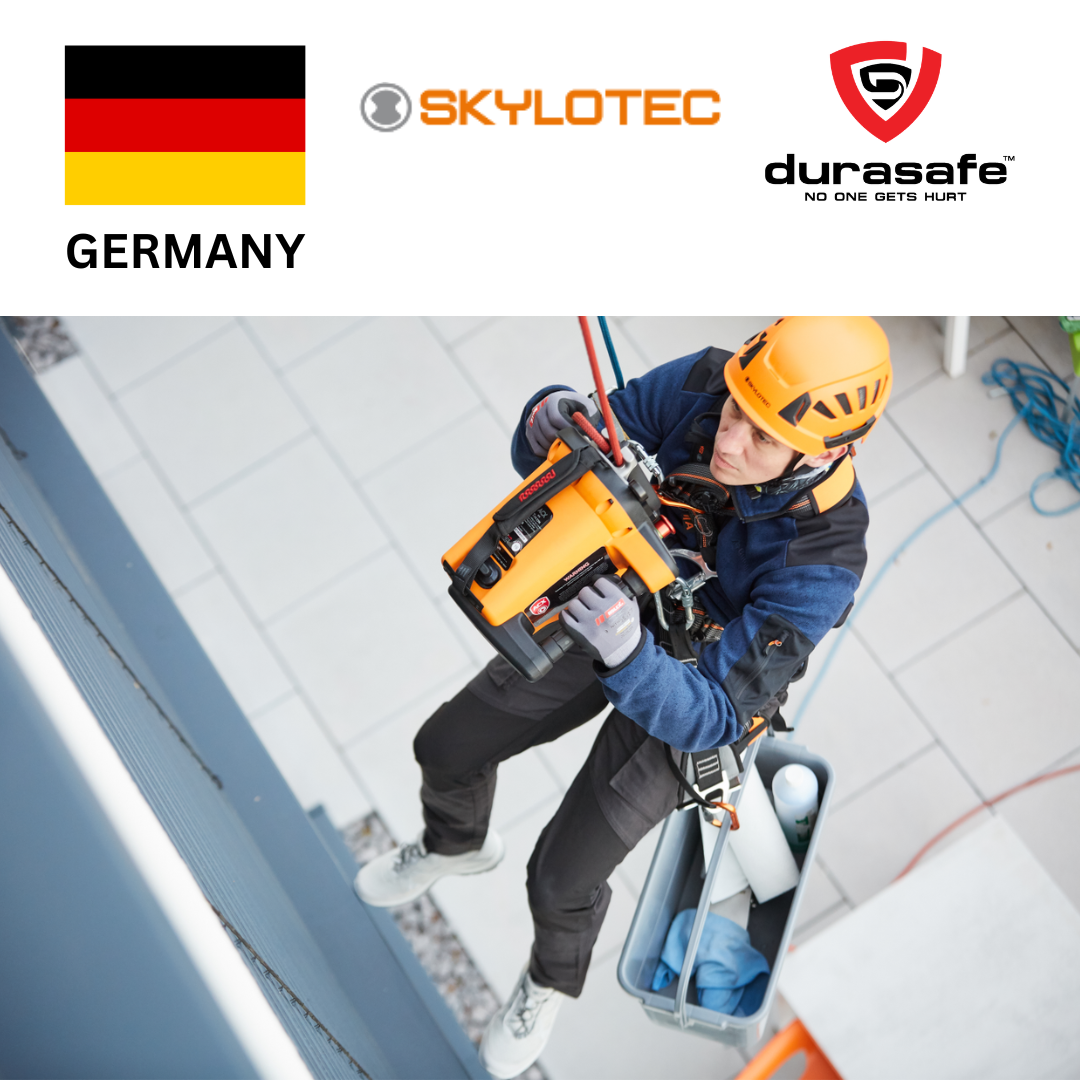

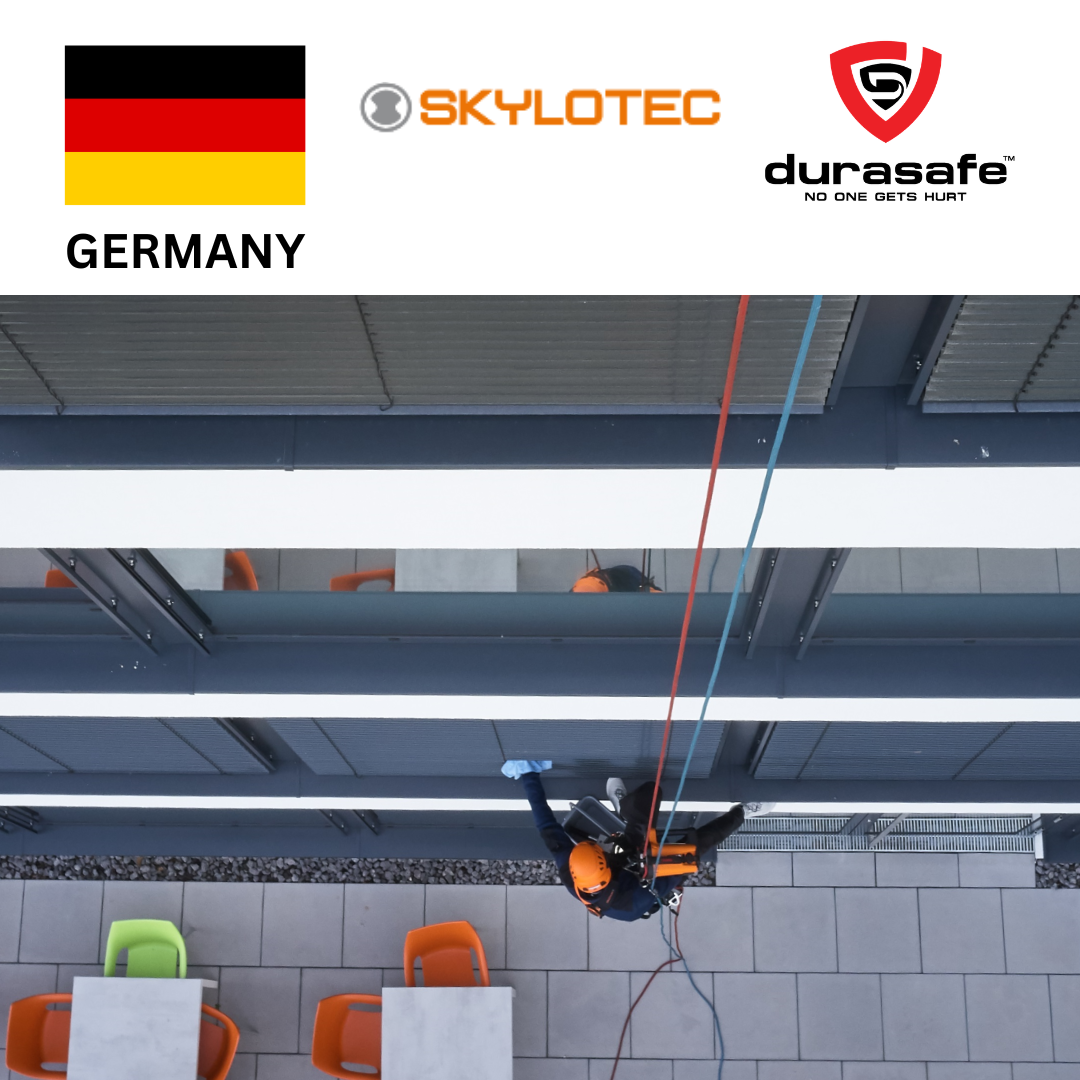

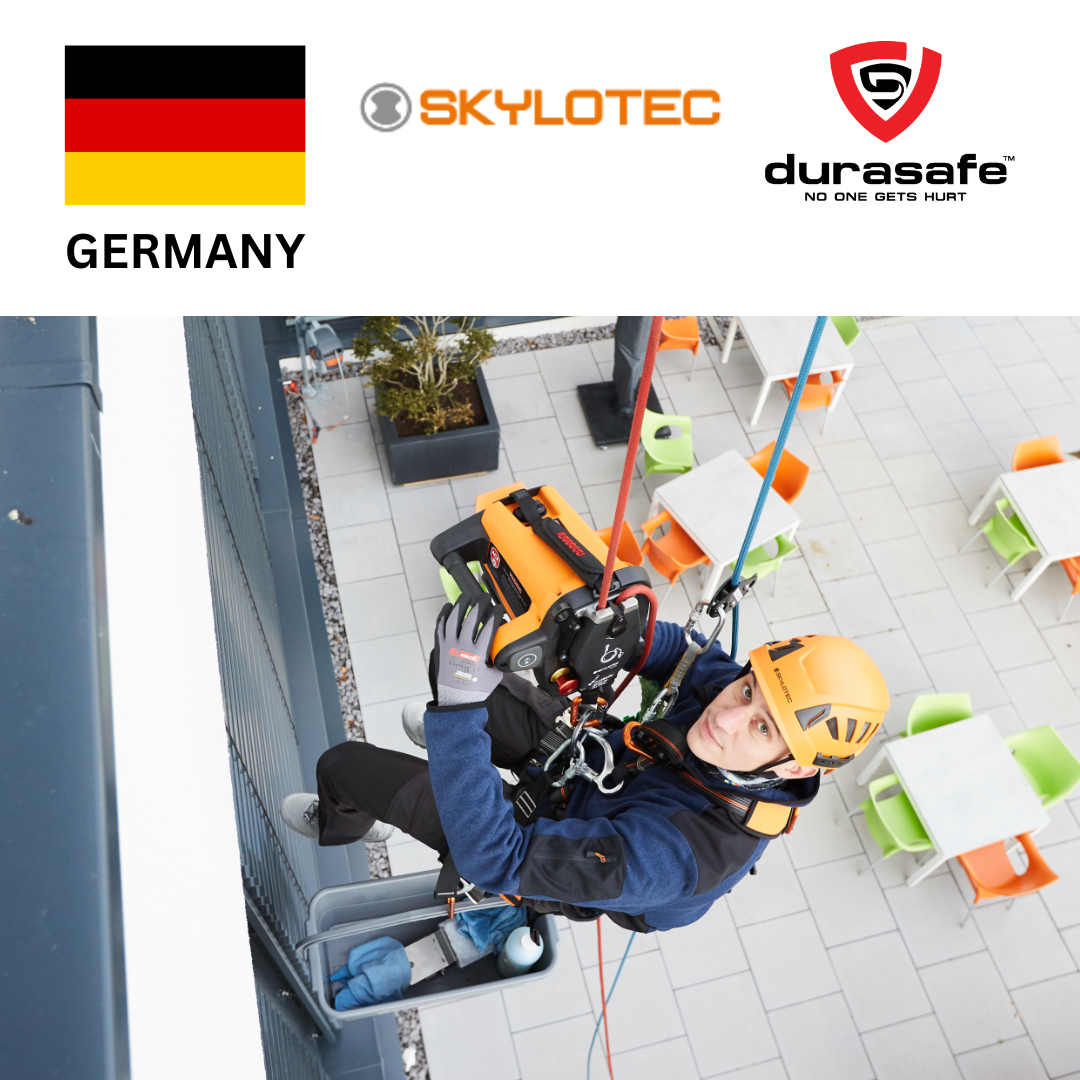

The ACX battery-powered hoist is a motorised system to ensure the transport of persons or loads to areas that are difficult to access and where occasional or recurring work is carried out. ACX is used, among other things, for cleaning facades or windows, for the maintenance of complex building structures, for the rotor blade maintenance of wind turbines or for transporting loads on masts. The ACX POWER ASCENDER considerably simplifies and accelerates work on complex structures and makes expensive access systems or lifting platforms superfluous. Countless rescue scenarios can also be carried out efficiently and with minimum effort with the ACX. ACX forms a highly flexible system for easy and cost-efficient cleaning or maintenance. In an emergency, the ACX can be controlled by remote control. The operation and use of the ACX can be learned in special training courses.

Application areas

Working in confined spaces, Working on masts and towers, Scaffolding, Rescue, Rope access, Various

Battery range at 20° C & 100 kg load

550 m

Charging time

90 minutes

Emergency descent function

Yes

Emergency stop function

Yes

Energy source

Removeable Battery, POA-004 power supply

Remote control range

150 m

Underwater operations

No

Usable in SEAL PAC

No

Water dust resistance

IP 55

Working Load Limit

220 kg

Min. temperature

-10 °C

Max. temperature

40 °C

Minimum compatible rope diameter

11.00 mm

Maximum compatible rope diameter

11.00 mm

Minimum descent speed

1 m/min

Maximum descent speed

25 m/min

Min. ascent rate

1 m/min

Max. ascent rate

24 m/min

Min. noise level

0 dB(A)

Max. noise level

76 dB(A)

Material

Steel, Aluminium, Nylon

Number of Rechargeable Batteries

2

Regional Charger

CN

Customs tariff number

84253100

Product length

63.00 cm

Product width

37.00 cm

Product height

42.00 cm

Colour

Orange

Net weight

28.00 kg

Gross weight

28.00 kg
