SKYLOTEC MILAN 2.0 Power Rescue-Descending Device with Drill Connection – Rope Not Included

Part Number: A-029

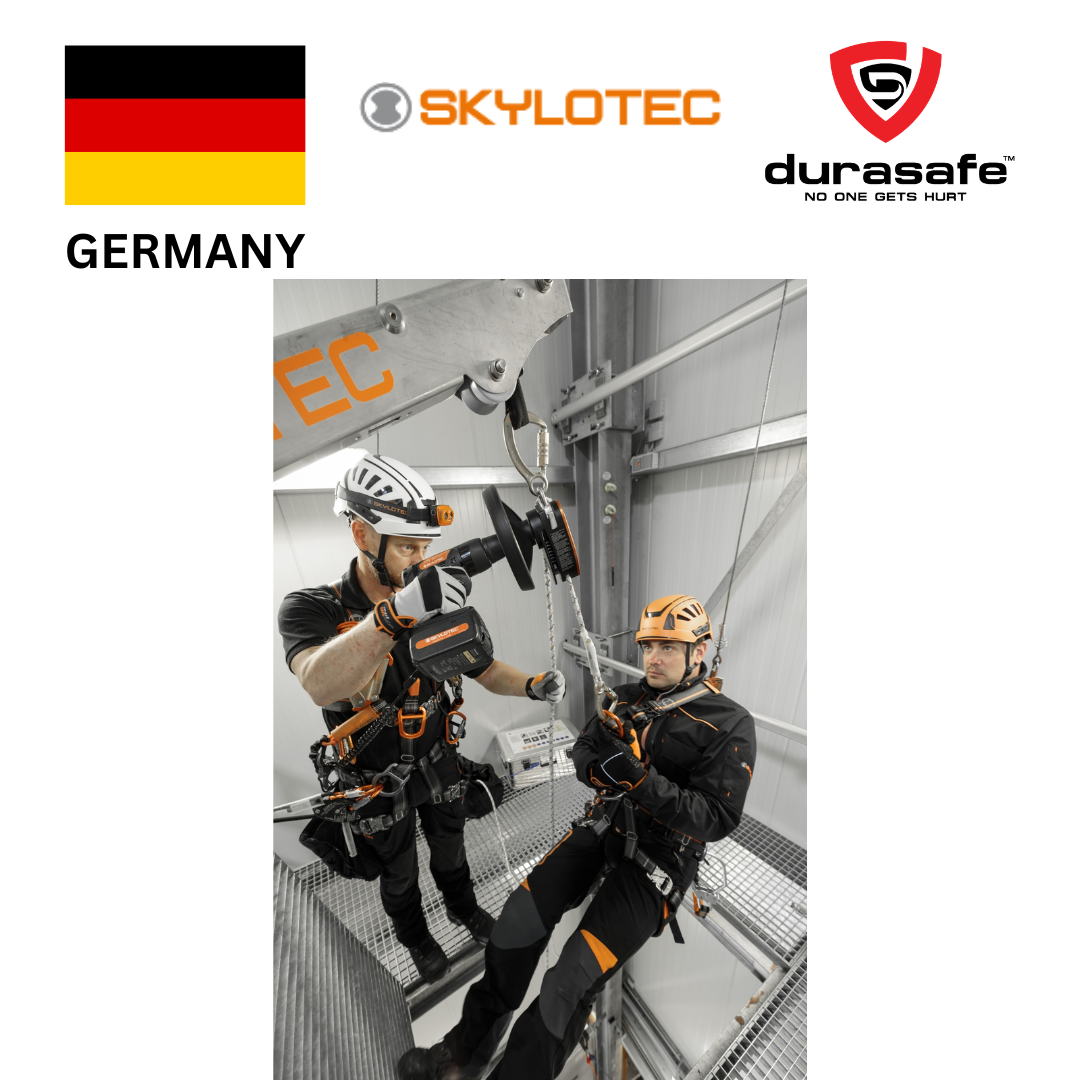

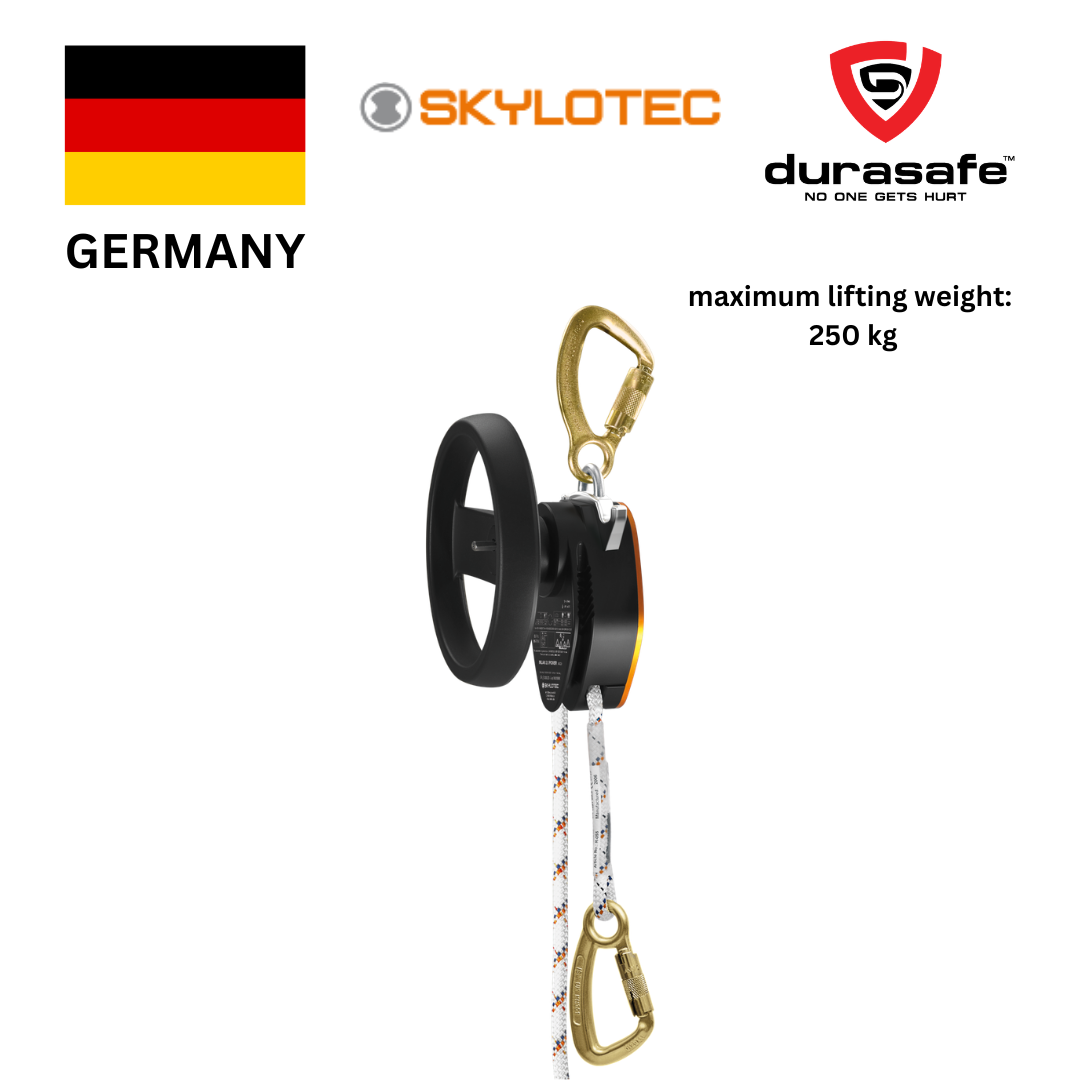

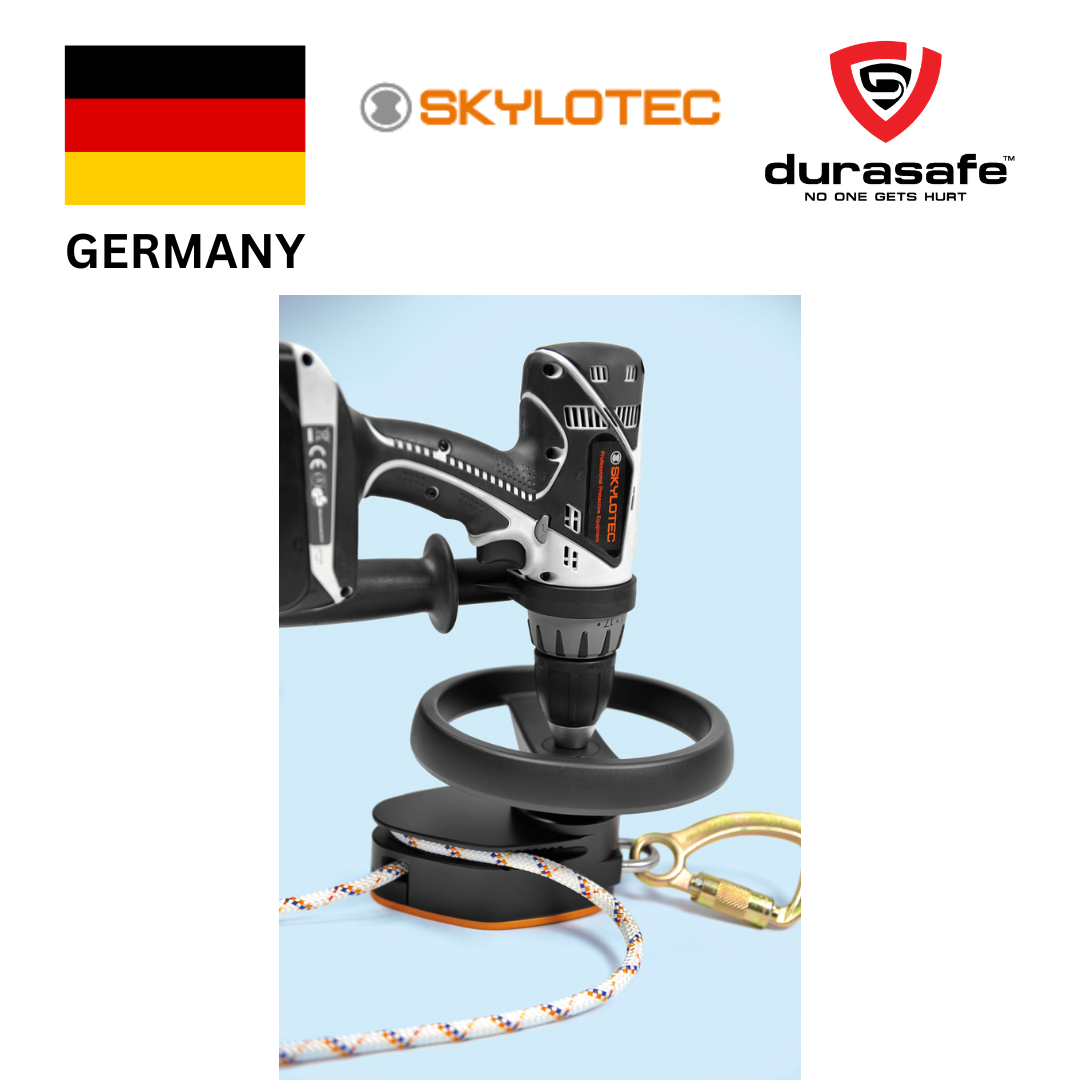

for electrical rescue over long distances, manual options available, lifting time: <2 min. for 10 m, max. 250 k - Electrically operated rescue hoist with RDD - enables effortless roping up, < 2 min for 10 m - maximum lifting weight of 250 kg in an emergency MILAN 2.0 POWER is THE special version of the MILAN 2.0 HUB. With the RESCUE DEVICE DRIVER (RDD) it offers an option for fast and safe rescue over long distances upwards. In addition, all manual options for rescue and evacuation are available. With special SEAL PACs an extended lifetime of up to 15 years can be guaranteed, which can even be doubled once within a resealing process to 30 years. Note: When working at heights, a suitable rescue concept based on a risk assessment is essential. MILAN offers a variety of applications for different rescue scenarios. To master these techniques, the user must be carefully trained by a SKYLOTEC-certified instructor who has been specially trained on the device.

Application areas

Working in confined spaces

Lifting function

Yes

Max. abseiling height

501 m

Max. load 1 person

141.00 kg

Max. load 2 persons

280.00 kg

Maximum lifetime

20 years

Maximum load

280.00 kg

Panic function

No

Rescue function

Yes

Usable in SEAL PAC

30 years

Min. temperature

-35 °C

Max. temperature

60 °C

Minimum compatible rope diameter

9.00 mm

Maximum compatible rope diameter

9.00 mm

Max. Abseil speed

0.90 m/s

Max. number of persons

2

Material

Steel, Aluminium, Polyamide

Standards

ANSI Z359.9-2021, EN 341:2011/1A, EN 1496:2017/A, MEETS CSA Z259.2.3:16/1/B

E-class number

40-21-01-01

Customs tariff number

84251100

Colour

Orange, Black, White

Net weight

5.19 kg

Gross weight

5.19 kg

Data Sheet

EU DECLARATION OF CONFORMITY (EN)

Declaration of Conformity

Instruction Manual
